EP 4 516 756 A1

Device for preparing limestone slurry and calcium hydroxide for laterite-nickel ore hydrometallurgy

(22) 30.06.2023

(43) 05.03.2025

(57) Disclosed is a limestone slurry and lime milk preparing device for hydrometallurgy of laterite nickel ore, which relates to the technical field of limestone slurry and lime milk preparation and comprises a limestone slurry preparation assembly and a lime milk preparation assembly. The limestone slurry preparation assembly comprises a first feeding machine, a grinding mill, a mixing machine, a first transfer pump, and a first buffer tank, connected sequentially. When the weight of the limestone slurry in the first buffer tank is not within a first preset range, the first feeding machine, grinding mill, mixing machine, and first transfer pump can adjust their respective operating speeds. The lime milk preparation assembly comprises a lime kiln, a second feeding ma­chine, a nitrifying machine, a third transfer pump, and a second buffer tank, connected sequentially. When the weight of the lime milk in the second buffer tank is not within a second preset range, the lime kiln, second feed­ing machine, nitrifying machine, and third transfer pump can adjust their respective operating speeds. The entire production line can respond in coordination, with overall automated adjustment of production efficiency and a high level of intelligence.

(71) PT ESG New Energy Material Jakarta 12950 (ID), PT QMB New Energy Materials Jakarta 12950 (ID), GEM Co., Ltd. Bao‘an Center Area, Bao‘an, Shenzhen Guangdong 518101 (CN), PT Gem Indonesia New Energy Materials Jakarta 12950 (ID)

(84) AL, AT, BE, BG, CH, CY, CZ, DE, DK, EE, ES, Fl, FR, GB, GR, HR, HU, IE, IS, IT, LI, LT, LU, LV, MC, ME, MK, MT, NL, NO, P,L PT, RO, RS, SE, S,I SK, SM, TR. Designated Extension States: BA, Designated Validation States: KH, MA, MD, TN.

x

Related articles:

Issue 08/2024 US 2024/0294390 A1

Agent for the stabilisation of lime milk

(22) 27.06.2022 (43) 05.09.2024 (57) An agent for stabilizing lime milk may combine a specific polymer and one or more osidic, polyol, or acid derivatives. Methods may preparing the agent or prepare...

more
Issue 11/2017 US 2017/0182456 A1

Aqueous lime slurry, preparation process and uses

(22) 23.02.2017 (43) 29.06.2017 (57) Preparation of aqueous slurries of calcium dihydroxide. Preparation of aqueous suspensions of calcium hydroxide. (71) Coatex, Genay (FR) (73) Coatex, Genay (FR)

more
Issue 03/2024 EP4334262 (A1)

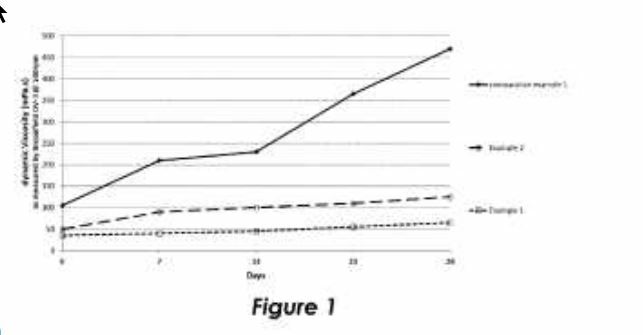

Low viscosity milk of lime
