TELSCHIG VERFAHRENSTECHNIK GMBH

Dust-free automatic big-bag emptying system for fast emptying

In recent years Telschig Verfahrenstechnik GmbH has developed a new big-bag opening, emptying and handling system, which is successfully used in various industrial areas. The big-bags contain dusty products or granules. Areas of application for this new technology have already been found in the chemical-, food-, recycling companies and cement factories. Due to an effective and mature technology, it was possible to use these plants in different industrial areas worldwide. It is the ideal solution for handling up to 25 big-bag/h and as a double version up to 50 big-bag/h.

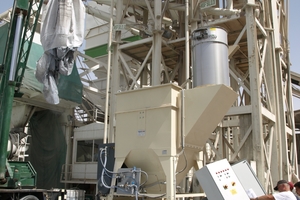

Telschig big-bag emptying systems are supplied in a compact design, including lump breaker, to dissolve or to crush any lumps which may exist in the products. Furthermore, the machines can be equipped with a mechanical or pneumatic conveyor, which can be adjusted to the required or maximum emptying capacity. This is a compact handling system for the opening and emptying of big-bags and the conveying of the products to the desired destination.

Special features of the big-bag emptying system are the following parameters:

Fully automatic operation without operator; except transport of the big-bag to the emptying station and recycling of the emptied big-bag

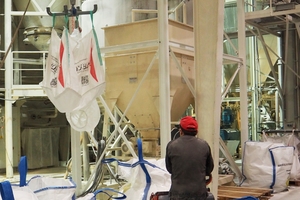

Absolutely dust-free operation due an integrated dedusting filter with exhaust fan including mechanical cover

High emptying rate due large emptying hopper

Fast emptying up to max. 25 big-bag/h and in special version as a double system with a capacity of up to 50 big-bag/h. The achievable performance is influenced by the big-bag content, the physical product characteristics and the infrastructure of feeding the filled and disposing of the emptied big bags

A product crusher is installed at the outlet of the big-bag emptying funnel so that the lumps contained in the product can be dissolved or crushed



The entire system is mounted either stationary or mobile on a compact frame, including electrical control on site, cabling and can therefore be used in every position and for different applications. For specific requirements, the system can be designed according to the latest explosion-safety regulations and provides Atex-certificates.

Characteristic applications are e.g. direct filling of production plants, without downstream conveying or with downstream mechanical or pneumatic conveying for the loading of silotrucks, working or storage silo.

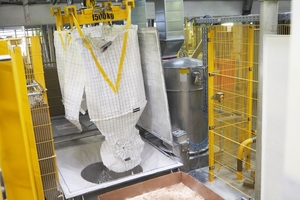

The new technology is based on the following functions: The filled big-bag is lifted by a stationary crane, forklift, crane truck, etc. above the big-bag emptying station. Then by self-weight, an opening of 650 mm in diameter is cut on the underside by means of a stationary circular knife. The cutting angle is 270 °, so that the cut-out bottom part remains attached to the big-bag body and automatically opens like a bottom flap through the load of the material.

If the big-bag that is to be emptied is equipped with a bottom valve, the opening and emptying works as described above. The bottom valve spout does not effect opening or emptying.

Depending on the bulk density, the bulk material and the content of the big-bag, the emptying takes place in approx. 1-3 minutes due the large outlet diameter. On the upper side of the big-bag emptying hopper is a flexible cover, which fits tightly to the outer contours of the filled big-bag. A dedusting filter mounted on the side of the big-bag emptying hopper with integrated suction fan creates a negative pressure in the emptying funnel, so that the dust outflow is avoided. The dust contained in the exhaust air is separated by the filter and continuously cleaned. The cleaned dust automatically returns to the emptying funnel. This prevents product loss. According to the required environmental protection, different filter constructions can be used in order to keep the clean gas dust content below the desired limit.

With this technology, one-way and multi-way big-bags can be opened and emptied. If in special applications it is not desired to cut the bottom, the big-bag is emptied by manual opening of the outlet valve. The big-bag emptying funnel is supplied in two sizes with 2.0 m³ or alternatively with 3.5 m³; a stainless steel version for the parts in contact with the product or the entire system is possible.

//www.telschig.com" target="_blank" >www.telschig.com:www.telschig.com

x

Related articles:

Issue 09/2009

New: EMC technology also for 10  m filter bags

1 Introduction After the use of 8 m filter bags had become state of the art in the cement industry thanks to EMC technology, intensive development work resulted in the successful transfer of EMC...

more
Issue 7-8/2017 PANPAC ENGINEERING A/S

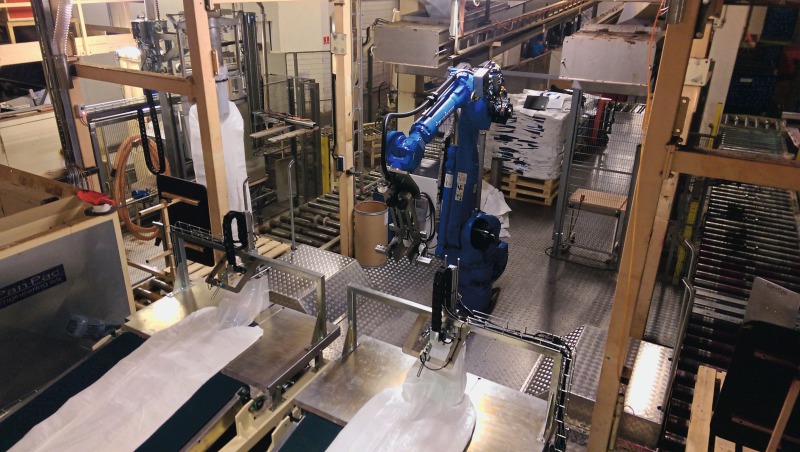

PanPac Engineering A/S reduces costs with a new fully automatic big bag filling system
