Lime slaker system, modular water ­panel for lime slaker system, and method of ­using the same

(22) 09.02.2016

(43) 11.08.2016

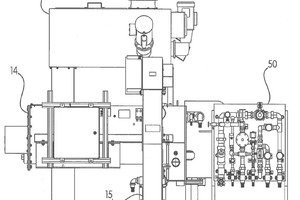

(57) A lime slaker system for converting quicklime to a lime slurry includes: a lime feeder; a base slaker that includes a slaking chamber and a dilution chamber; a grit remover; and a modular water panel with a piping assembly in fluid communication with at least the base slaker and grit remover. The modular water panel is configured to independently control water distributed to the slaking compartment, the dilution chamber, and the grit remover.

(71) Integrity Municipal Systems, LLC, Poway, CA (US)
