New external pneumatic lifting device for screening machines

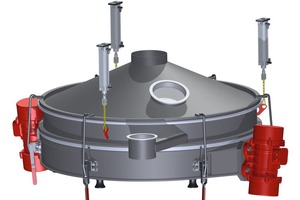

Screening specialist GKM Siebtechnik has a new generation of pneumatic lifting devices to offer. This new, easy-to-use system has already been successfully applied by well-known customers in the market. These external pneumatic deck lifters can be retrofitted onto any screening machine, whether it is a vibrating type or a tumbler – anytime and with ease. They make it quick and easy to exchange screen inserts, hence shortening the setup and idle times. By means of ceiling-mounted pneumatic cylinders, individual screen decks can be raised for inspecting or exchanging the insert. This is of particular advantage for machines with multiple screen decks, because the raised interdecks can be lowered back down to the exact same position. This innovative new system is already in successful service. It can be backfitted at will and with little effort. It is ideally suited for all round screening machines and has the following advantages:

very fast screen exchange

quick and easy inspection and cleaning of the screening machine

external installation of pneumatic cylinders for extended longevity

low initial cost
