FLEXCO EUROPE GMBH

Skirting systems stop material spillage at transfer point

Flexco offers various skirting systems to avoid loss of material in belt conveyor transfer areas in coal mines, steel mills and cement production. Fasteners combined with skirting systems effectively isolate the material on the belt without damaging the belt cover, enabling operators to easily reduce dust levels while increasing material throughput. Flexco supplies easy-to-install skirt clamps for a wide range of load levels.

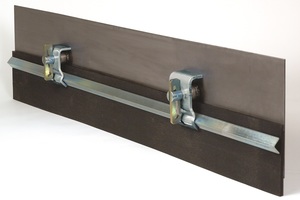

Flex-Lok skirt clamps are a new addition to the Flexco range: customised for various conveyor systems, they are even suitable for large and heavy-duty conveyance tasks. On the other hand, Flex-Lok Mini Clamps are ideal when space is limited – the rubber sealing strip is only 8 to 16 mm thick, while the thickness of the standard version is between 8 and 25 mm. Flex-Lok skirt clamps can be easi-ly installed by one person, because the clamp plates position the retaining rod of the rubber sealing strip. The skirt clamps can be mounted diagonally or vertically on the conveyor structure.

The Flex-Seal skirting system is a dynamic containment unit which completely seals the loading zone parallel to the belt. The system reduces dust levels by closing gaps through which material can spill. Problems such as belt damage and belt wander no longer occur. The thickness of the Flex-Seal rubber skirt varies between 8 and 19 mm with this solution. Flexco also offers a cost-effective solution that is especially suitable for confined spaces – the RMC1 skirting system.

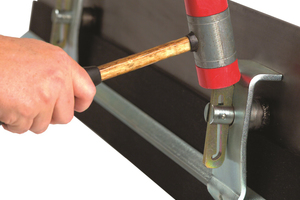

All three of these Flexco solutions are designed for easy installation – the clamp bolts are designed to allow the clamp wedge to rotate through 360°, locking it in place, and an additional anti-vibration clamp pin ensures that the clamp bolt remains in place even under extreme conditions. Service technicians can safely perform installation and maintenance work on the skirting system from the sides of the conveyor system. The individual system components are corrosion-resistant and highly resili-ent to ensure a long service life.

www.flexco.com

x

Related articles:

Issue 2014-10 MARTIN ENGINEERING

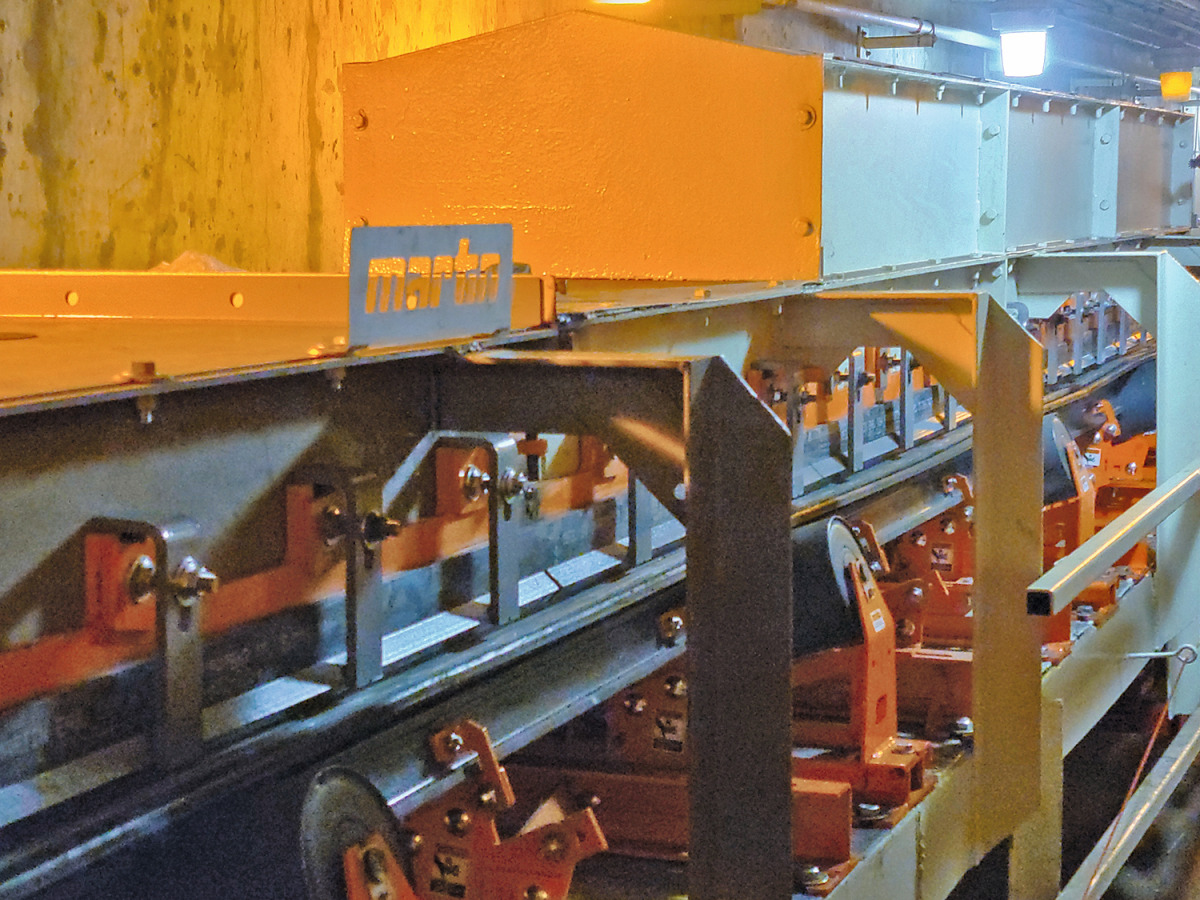

Self adjusting skirting for reduced conveyer belt maintenance

Martin Engineering from Neponset, IL/USA has introduced a novel conveyor belt skirting system with a streamlined design engineered to fit virtually any conveyor with less maintenance and more...

more
Issue 2018-3 FLEXCO EUROPE GMBH

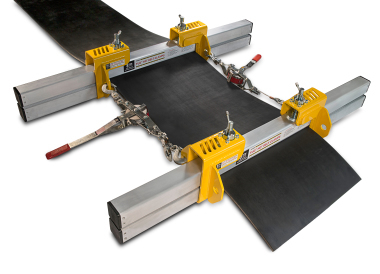

Flexco TUG HD belt clamp simplifies maintenance work on conveyor belts
