US 2023/0104043 A1

Cement kiln modeling for improved
operation

(22) 29.10.2020

(43) 06.04.2023

(57) A system and method for controlling operations of a cement kiln plant. The system comprises first and second processing logic. The first processing logic is configured to perform an integrated modeling computer program comprising a Virtual Cement and Concrete Testing Laboratory (VCCTL) modeling computer program and a virtual cement plant (VCP) modeling computer program. The first processing logic receives output of the VCP modeling computer program and imports the output into the VCCTL modeling computer program. The second processing logic is configured to perform one or more multi-objective metaheuristic optimization computer programs on output of the integrated modeling computer program to adjust control parameters that are used to control the operations of the cement kiln plant. The integrated model can provide a quantitative optimization tool for different energy efficiency measures addressed from cement plants and reduce energy, material consumption and greenhouse gas emissions without losing the performance of material.

(71) University of Florida Research Foundation, Gainesville, FL (US)

x

Related articles:

Issue 5/2021 WO 2021/087154 A1

Cement kiln modeling for improved operation

(22) 29.10.2020 (43) 06.05.2021 (57) A system and method for controlling operations of a cement kiln plant. The system comprises first and second processing logic. The first processing logic is...

more
Issue 8/2023 CN219433716 (U)

Biomass fuel drying and cement kiln coupled system

(22) 08.02.2023 (43) 28.07.2023 (57) The utility model discloses a biomass fuel drying and cement kiln coupling system and method. The system comprises a grate cooler waste heat recovery system, a...

more
Issue 5/2023 WO 2023/067154 A1

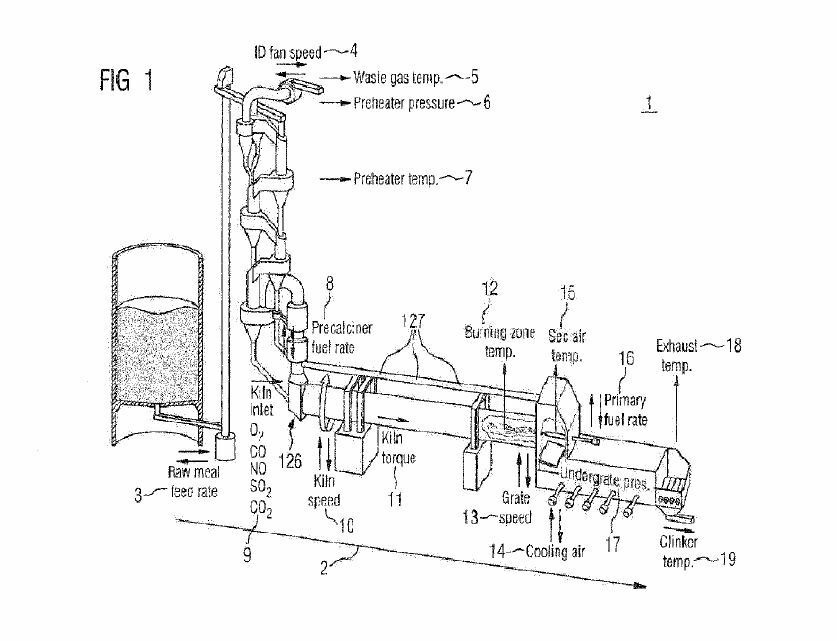

Method and system for observing a cement kiln process
