GKM SIEBTECHNIK GMBH | Powtech 2019 | 4A.331

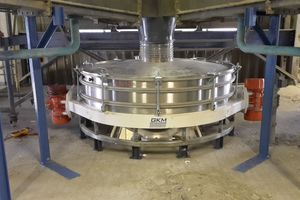

Customized solution for control screening of cement in front of silo truck loading

The GKM Control Screening Machine KTS-VS2 2000/1 has been specially developed for the screening of cement before silo-truck loading. The machine has a central inlet and outlet. This and the additionally enlarged inlet allows a throughput of 200 t/h with a mesh size of 2.0 mm. The screening process removes contaminants and oversize particles maintaining the high quality of your products before loading the truck. The machine is treated with ViwateQ surface finish to prevent and reduce adhesions of the product. The conical lower part and the screen frame are equipped with a newly developed vibrating cleaning system for cleaning the mesh cloth and to increase the performance of the machine. The KTS-VS2 2000/1 1 is already well-established at well-known manufacturers in the building materials industry.

GKM presents its range of tumbler screening machines, vibrating screening machines and laboratory screening machines.

www.gkm-net.de

x

Related articles:

Issue 9/2017 GMK SIEBTECHNIK?HALL/STAND 4A-331

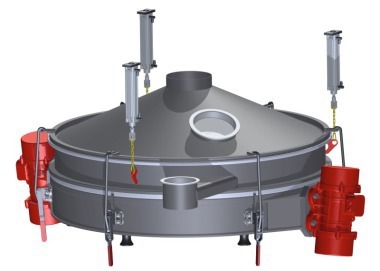

New external pneumatic lifting device for screening machines

Screening specialist GKM Siebtechnik has a new generation of pneumatic lifting devices to offer. This new, easy-to-use system has already been successfully applied by well-known customers in the...

more
Issue 7-8/2019 KREISEL GMBH & CO KG

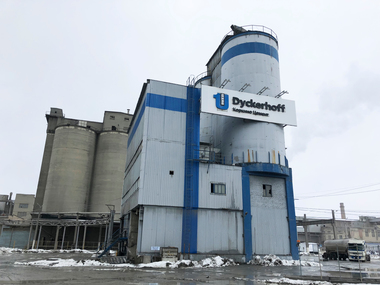

Modernization of a cement silo at Dyckerhoff’s Korkino plant

Kreisel successfully commissioned the silo bottom modification, silo discharge and fully automatic truck loading system of cement silo 10 in Korkino/Russia, with an unloading capacity of max. 250 t/h....

more
Issue 3/2016 HAVER & BOECKER OHG

High performance truck bag loader with above-average machine availability

Haver & Boecker has expanded its bag handling product range for bulk products of any kind. The Haver & Boecker SpeedRoad is a compact, efficient, economic and fully automatic system for loading filled...

more
Issue 9/2017 ALLGAIER PROCESS TECHNOLOGY?HALL/STAND 4A-315

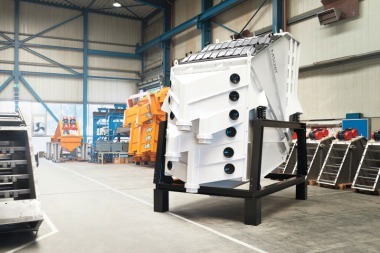

The new MSizer extend – ­screening at the highest stage
