FRITSCH GMBH | Powtech 2019 | 2.227

Fast analysis of particle shape and size

Fritsch present their complete spectrum of milling and sizing.

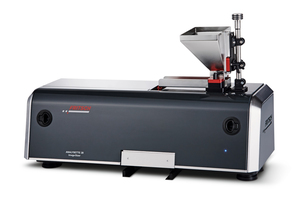

Analysette 28 ImageSizer

The Fritsch Analysette 28 ImageSizer for dry and wet measurement a very easy and cost-effective alternative to sieving and is the ideal particle sizer for all applications that require accurate and reproducible measuring results for both particle shape and size. The optical process of Dynamic Image Analysis provides results for a wide measuring range, delivers multiple shape parameters and evaluation possibilities for particle size. The measuring time depending on the sample quantity, is under 5 minutes. A advantage is a great flexibility for different measurement tasks for particle sizes of 20 µm – 20 mm in quality control, research and laboratory:

– easy wet measurement of suspensions and emulsions

The Analysette 28 ImageSizer is in combination with the corresponding wet dispersion unit ideal for measurement of particle shape and size of suspensions and emulsions.

Wet dispersion is particularly suitable for fine particles, poorly flowing, fine-agglomerating or sticky materials, which do not react in water or other liquids.

– efficient dry measurement of powders and bulk solids

The Analysette 28 ImageSizer is the ideal particle sizer for fast analysis of particle shape and size of dry, free-flowing materials. Via the optical analysis of the particle shape and particle size, you can identify damaged particles, contaminates, agglomerates or oversized and undersized particles accurately and fast and view them completely uncomplicated in single images.

– simple and fast evaluation via Fritsch Cloud and Gallery

The evaluation of the measuring results is uniquely simple with the Analysette 28 ImageSizer. The evaluation software ISS displays each recorded particle clearly as a data point in the immediately available Fritsch Cloud as well as in the Fritsch Gallery.

Analysette 22 NanoTec

Due to the especially wide measuring range of 0.01 – 2100 μm, the Analysette 22 NanoTec is the ideal, universally applicable Laser Particle Sizer for efficient dry and wet measurement of particle size distributions down into the nano range. The Analysette 22 NanoTec is ideally suited for particle size analysis of powdery

samples, of solids in suspensions and of emulsions. Your advantage: extremely simple operation, perfect measurement, short analysis times and consistently reproducible and reliable results. And a convincing combination of price and performance.

– quick and easy change of the dispersion method

Each particle size analysis is only as good as its dispersion. Therefore the Analysette 22 NanoTec consists of a compact measuring unit that can be quickly and easily combined with different dispersion modules for dry or wet measurement according to on the measuring task. The measuring cells of the different dispersion modules of the Analysette 22 are located in practical cartridges that can be exchanged with a single motion - without changing any hoses or modifying the instrument. Due to that, the Analysette 22 NanoTec is flexible and can easily be modified at any time.

– perfect fully automatic measurement and evaluation

The Analysette 22 NanoTec software contains completely predefined SOPs (Standard Operating Procedures) for nearly all typical measurement tasks, making operation especially easy. Via a well-arranged input mask, these SOPs can be completely free and flexible modified to perfectly suit each measurement requirements. For perfect evaluation of the measuring results integrated standard reports are offered.

www.fritsch-international.com
