High-efficiency motor series from Siemens now consistently available in efficiency class IE4

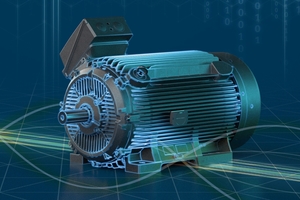

The standard version of Simotics SD motor series is offered in the efficiency class Super Premium Efficiency (IE4) across the entire power spectrum from 2.2 to 1000 kW and for the number of poles 2, 4, as well as from 75 kW for 6 poles and from 55 kW for 8 poles. Simotics SD in IE4 thus exceeds the so-called ErP Directive 2019/1781 (energy-related products). This European directive defines the eco-design requirements for electric motors and speed control systems and comes into force in two phases: From July 2021, it requires the efficiency class Premium Efficiency (IE3) for 2- to 8-pole electric motors from 0.75 kW to 1000 kW. From July 2023, it requires the efficiency class Super Premium Efficiency (IE4) for 2- to 6-pole motors of medium power from 75 kW to 200 kW. In accordance with the regulation, Siemens offers the Simotics SD motor series consistently in IE4 for all affected motors. In addition, however, also for motors with an output of up to 1000 kW as well as for 8-pole motors from 55 kW, which are still exempt from the second stage from 2023. Users of Simotics motors can thus meet the increasing requirements for energy efficiency and environmental compatibility in the long term.

Highly efficient motors also allow users to save energy, lower their operating costs and reduce CO2 emissions. Such motors are typically used in the process industry for pumps, fans, compressors, extruders, mixers, agitators, centrifuges, rollers, or winders. This applies primarily to the water, wastewater, chemical, oil & gas, cement, paper, marine and metal processing industries.

The motors of the explosion proof Simotics XP series also exceed the currently required efficiency standards. They are also offered in IE3 and IE4. IE3 is standard in the increased safety (Ex eb) type of protection. This means that the requirements that come into force in 2023 and demand efficiency class High Efficiency (IE2) are also exceeded here. Another example from the Simotics portfolio is the Simotics reluctance motor. This motor is characterized by the highest efficiency levels, comparable to IE4, even in the partial load range. In the system with a Sinamics converter, it exceeds the minimum requirements of the highest defined system efficiency class IES2.

www.siemens.com

x

Related articles:

Issue 5/2017 CURRAX GMBH & CO. KG

Bucket elevator drives from Currax now feature new Simogear auxiliary drive

Bulk materials such as cement and lime need to be reliably transported over several meters in height. Currax offers its customers the ideal solution with fully redesigned bucket elevator drives. This...

more
Issue 4/2018 SIEMENS AG

Extensive modernization – induction motor in the US enhances efficiency of cement factory

1 Introduction Lehigh Texas production plants stretch across the entire south and southeast of Texas in the USA. A socially and ecologically committed global exporter of cement products, Lehigh Texas...

more
Issue 1/2023 SIEMENS AG

Innovations in drive technology from Siemens for sustainable and economical production

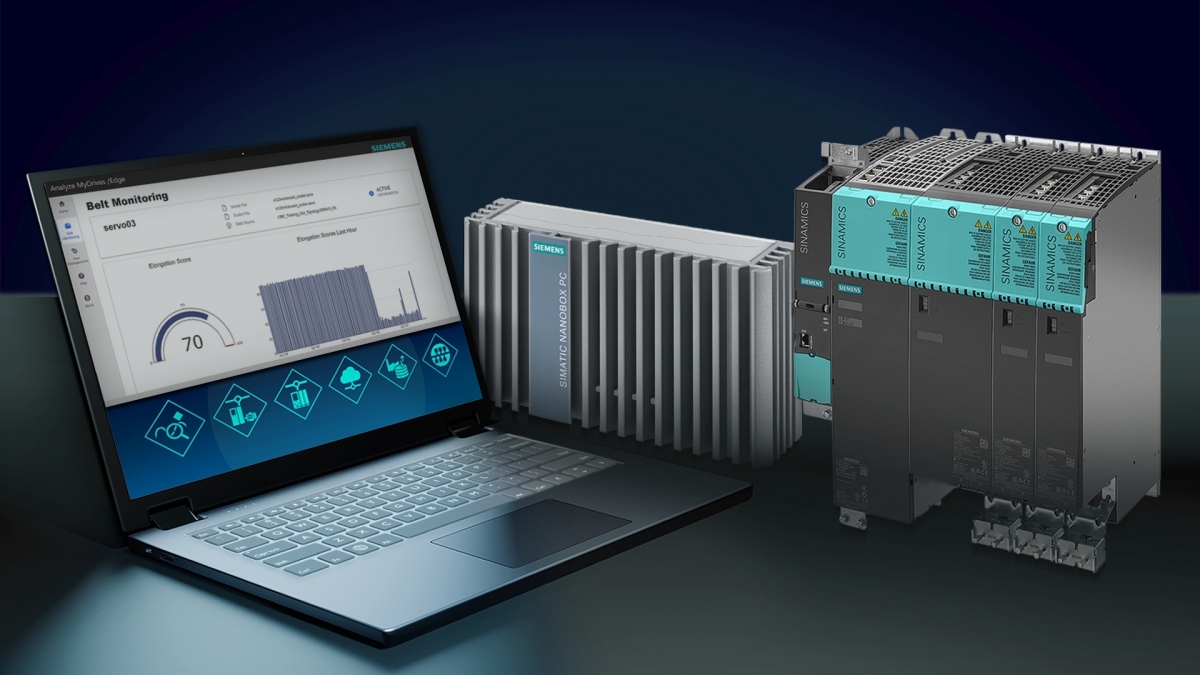

In the field of energy-efficient and sustainable drive technology, Siemens brought two innovations to this year’s Smart Production Solutions (SPS) trade fair in Nuremberg in November. The first...

more
Issue 5/2015 SIEMENS

New series of planetary gear units offers highest ­efficiency in its class

Siemens has widened its portfolio of planetary gear units.portfolio of planetary gear units. The Planurex 3 is available in ten sizes, with a torque range from 1700 to 5450 kNm. This raises the...

more
Issue 5/2019 SIEMENS AG

Energy saving, faster and quieter: servo motors optimize sand-lime brick presses

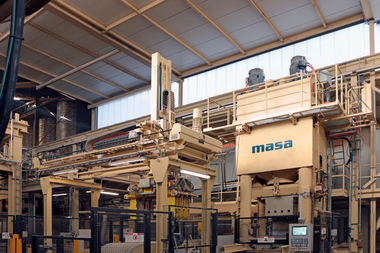

Sand-lime brick is a building material with many advantages and is widely used across the Benelux countries, Germany, Poland, Ukraine, and as far as Russia. There are various established stone formats...
