Reducing the load of dust by safely loading

All Lutze Group

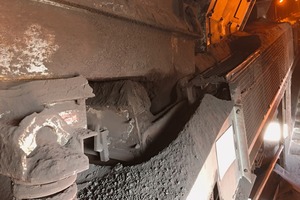

The material that is conveyed from one end of the production to the other spills over to the sides

All Lutze Group

1 Often the equipment must then be cleaned manually

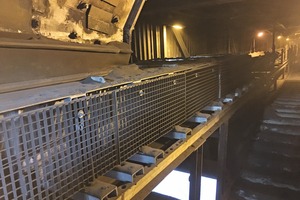

2 Rubber or polyurethane skirting is clamped either on the loading point or along the entire length of the belt

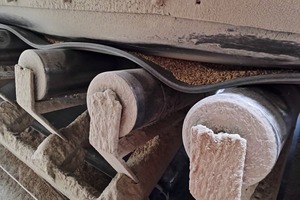

3 Gaps of the belt caused by sagging between two rollers can be enough for dust to blow though

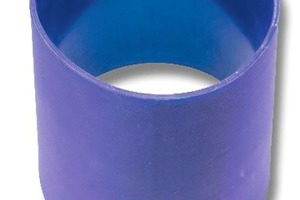

4 The flow of material at transfer points can be directed with a polyurethane or rubber hose

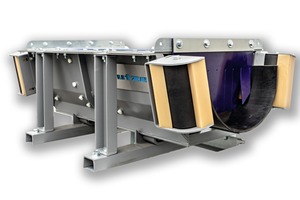

5 With SafeLoad Lutze has created a completely sealed transfer point

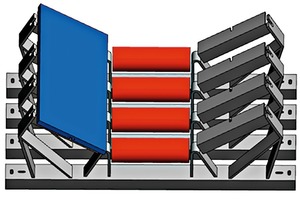

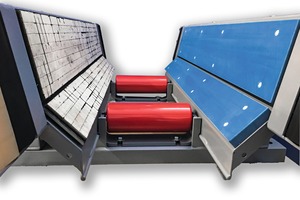

6 The module concept allows it to be adjusted individually to each installation

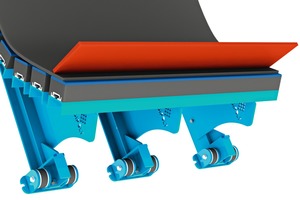

7 The broad network of skilled technicians can provide a quick and professional installation

Many production plants have big issues with big amounts of dust and the unpreventable resulting problems. The material that is conveyed from one end of the production to the other spills over to the sides and has an influence on the entire working environment (Lead figure). The conveyor system and all connected parts get covered in fine dusty material and over time it will build up to the point where it can negatively influence the production process or even create a fire and explosion hazard.

T‌o avoid this, companies often decide on taking the easiest approach: cleaning it up (Figure 1). Regularly. Over and over again. A person from the existing staff is chosen and appointed the glamorous task of shoveling, brushing, wiping, vacuum-cleaning or even blowing away the material from all the areas it should not have gotten to in the first place.

This of course only partially solves the problem of the contaminated machine parts and the production environment. Once the dust has been airborne and started traveling through the production, it will eventually find its way into even the...
