TML TECHNIK GMBH | bauma 2019 | C5.324

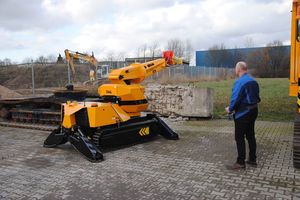

Remote controlled mini-format demolishing machine

The new Unidachs 110 stands out of the crowd with its compact design and a unique 360° endlessly rotatable boom, high manoeuvrability and a strong hydraulic drive. The width of the undercarriage is only 1315 mm and the height is 1635 mm. This allows access to working areas that are not easily accessible for other machines. Due to the remote operation, the operator is always at a safe distance.

Compared with mini-excavators with an articulated arm it has a further degree of motion. The 360° boom rotation, combined with the double-articulated cantilever boom offers a very high level of flexibility: Attachments – i.e. rotary drum cutters, hydraulic hammers, ripper buckets, ripper hooks, shears, pulverisers or buckets – can be utilised at almost any required angle of the profile or surface to be worked on.

The machine is optimal for de-bricking rotary cement kilns.

Despite the compact size of the machine, depending on the attachment, in combination with the kinematics of the boom a working radius of up to 5000 mm can be reached.

The machines are available with a choice of diesel-hydraulic or electro-hydraulic drives. Diesel engines have either 26 kW (EU Stage 3a) or 18,5 kW (EPA TIER 4), the electro-hydraulic unit has 25 kW.
