TAKRAF GMBH

Takraf Germany tastes HPGR success in Turkey

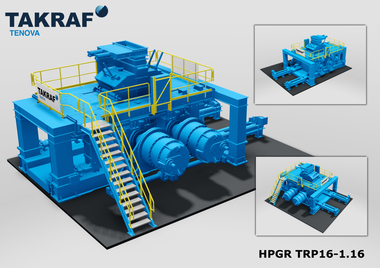

Takraf announced the receipt of an important project award for the supply of two High-Pressure Grinding Rolls (HPGRs) for a cement plant in Turkey. The company’s HPGR machines have been designed from the outset with maintainability in mind: a clear target to achieve this goal is the reduction of downtime, which includes integrated maintenance tools and a focus on the changing of wear parts. Furthermore, the machines boast a load optimized frame structure, which ensures the effective operability under varying load conditions.

In this application, each HPGR incorporates rolls with a diameter of 1800 mm, a width of 1600 mm and a weight of more than 50 t. Two variable frequency drives with a combined power output of around 3000 kW provide the power to process more than 1000 t/h.

Additionally, each roll’s surface is protected from wear by weld-hardfacing. The company recently installed a specialized welding machine for this very purpose. This specialized machine is able to guarantee constant quality throughout the entire hardfacing process and ensures that the hardened rolls are able to meet the demands placed upon them.

Engineering will be conducted by a joint team based at Takraf’s production facilities in Lauchhammer/Germany together with colleagues from the Cologne office. The machines will be manufactured in Lauchhammer, with delivery scheduled in the first half of 2019.

//www.takraf.com" target="_blank" >www.takraf.com:www.takraf.com

x

Related articles:

Issue 01/2011

Circuit high pressure grinding rolls (HPGR) in a cement grinding plant Part 2: Effect of operating parameters

1 Introduction Effects of operating parameters have been investigated by various researchers mostly through laboratory and pilot scale data ([1], [2] and [3]). Models have also been developed to...

more
TAKRAF GMBH | bauma 2019 | C2.349

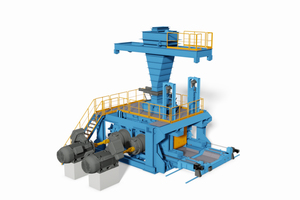

Product range expansion with high-pressure grinding rolls and equipment in the field of raw material processing

Further to the company’s innovative and reliable equipment for mining, bulk material handling and minerals processing, Takraf is also distinguishing itself as a complete service provider across the...

more
Issue 03/2012

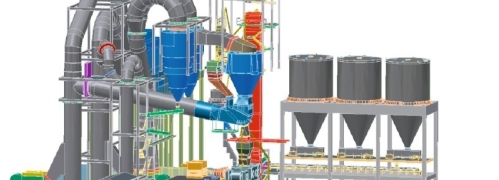

High-efficient cement manufacturing with POLYCOM® and SEPOL® PC – Machine and System Concept –
