Wear-protected rotary valve for 60 t/h dry lignite

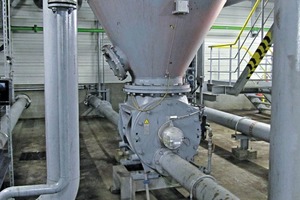

Coperion GmbH from Weingarten/Germany recently supplied and successfully commissioned a wear-protected rotary valve for the RWE Power AG Ville/Berrenrath, Germany coal refinery. The rotary valve type ZXQ with a dia­meter of 600 mm feeds dry lignite into a pneumatic conveying system that transports the material from a new vertical roller mill to the storage silos. The conveying pressure of the system ranges from 0.9 to 1.1 bar. The rotary valve is designed for a capacity of 60 t/h.

From the outset, this application has demonstrated the advantages of a rotary valve over screw pumps that are normally used for feeding. So the rotary valve does not constitute a potential igniting source, as the circumferential speed at the normal operating rate is below 1 m/sec. The valve is also available in a flame resistant version. With an operating power requirement of only 4 kW tremendous electrical power savings are possible. Simple maintenance and long maintenance intervals lower operating costs even further. Due to its lightweight design and low operating speeds the valve only requires a compact, simple foundation. These features also result in lower noise emissions.



Related articles:

Issue 01/2013

Rotary valves for a variety of applications

Rotary valves have always been used for discharging and volumetric feeding powdery or granular materials from silos, hoppers, filters or cyclones. WAM® offers high-quality, market-oriented rotary...


Silobau Thorwesten delivers new pulverized lignite silo to Rheinkalk

In order to secure the fuel supply for the rotary kilns used for the production of quicklime in the Flandersbach plant, Rheinkalk GmbH has commissioned S­ilobau Thorwesten with the construction of a...

Issue 5/2022 WO 2022/104767 A1

Dry desulphurization apparatus for lime rotary kiln

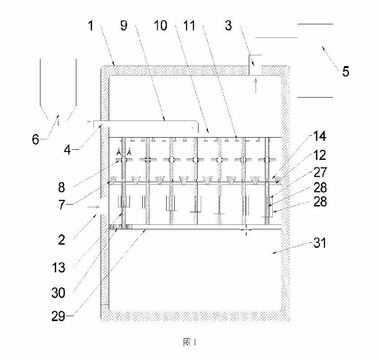

(22) 23.11.2020 (43) 27.05.2022          (57) A dry desulphurization apparatus for a lime rotary kiln. The dry desulphurization apparatus comprises a kettle body (1), wherein a flue gas inlet...
