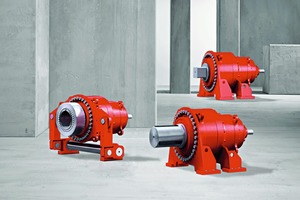

XP planetary gear units from a modular system

SEW-Eurodrive from Bruchsal/Germany has completely overhauled its XP series of planetary gear units with a torque range of 600 to 5200 kNm. The XP gear units are now based on a modular system. This leads to a harmonious size graduation with fine gear ratios of i = 25 to i = over 1000. The XP planetary gear units can be used wherever high performance is required, such as in roller presses, apron feeders, ball mills, bucket wheel excavators or crawler tracks, for example. Based on the large number of installations of this gear unit series around the world, the south-west German company has developed standards for the entire XP series and brought them together in a modular system.

The design of the XP gear unit modular system and the ability to combine it with a wide range of SEW drive solutions provide a high degree of flexibility when it comes to meeting the customers’ requirements, be it for optimized applications or customized modifications.

On the input end, SEW-Eurodrive ­offers the option of various versions, e.g. a motor adapter or a free input shaft linked to a cardan shaft or a safety clutch. On the output end, standardized output shafts are available as hollow shafts with shrink disks, solid shafts with keys or as square shafts. Installation is possible as a foot- or flange-mounted design or with a torque arm.

Some more advantages of the fully revised XP ­series:

Faster delivery times by well-structured modular system;

Increased reliability by optimized bearing selection, seal design and ­lubrication;

Simplified handling by easily accessible mounting points and assembly/disassembly devices;

Greater machine availability as the effective use of endoscopy systems for gear unit diagnostics has been factored into the design.

//" target="_blank" >


Related articles:

Issue 5/2015 SIEMENS

New series of planetary gear units offers highest ­efficiency in its class

Siemens has widened its portfolio of planetary gear units.portfolio of planetary gear units. The Planurex 3 is available in ten sizes, with a torque range from 1700 to 5450 kNm. This raises the...

Issue 12/2010

New plant for large gear units opened

SEW-EURODRIVE has opened a new plant for large gear units at its site in Bruchsal (Fig.). Accordingly the SEW- EURODRIVE now has a worldwide production network for large gear units with production...

Issue 5/2017 SEW-EURODRIVE

New mechatronic industrial gear unit

In many industrial sectors, the criteria to be met by conveying systems are becoming more demanding and specific and may even require appropriate documentation. The mechatronic industrial gear unit...

Issue 5/2018 FLENDER GMBH

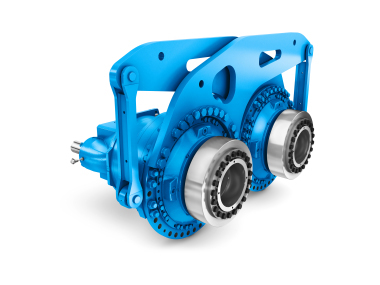

New planetary gear units for roller presses offer the best power density in the market
