US 2018/0142955 A1

Clinker inlet distribution of a cement clinker cooler

(22) 14.12.2017

(43) 24.05.2018

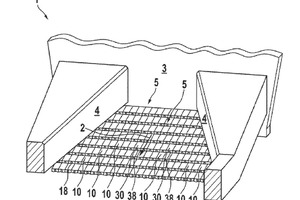

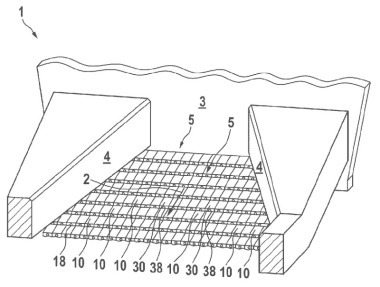

(57) A clinker inlet distribution grate for feeding a conveyor grate with clinker, previously discharged from a kiln onto the clinker inlet distribution grate wherein the clinker inlet distribution grate comprises at least a chute with at least two grate elements being arranged one besides the other providing a chute enables to easily remove clinker agglomerations, so called snowmen if at least a first of said at least two grate elements is static and that at least a second of said at least two grate elements is movable orthogonally to the cross direction of the chute.

(71) Alite GmbH, Neustadt (DE)

x

Related articles:

Issue 2017-3 WO 2017/005612 A1

Clinker inlet distribution of a cement clinker cooler

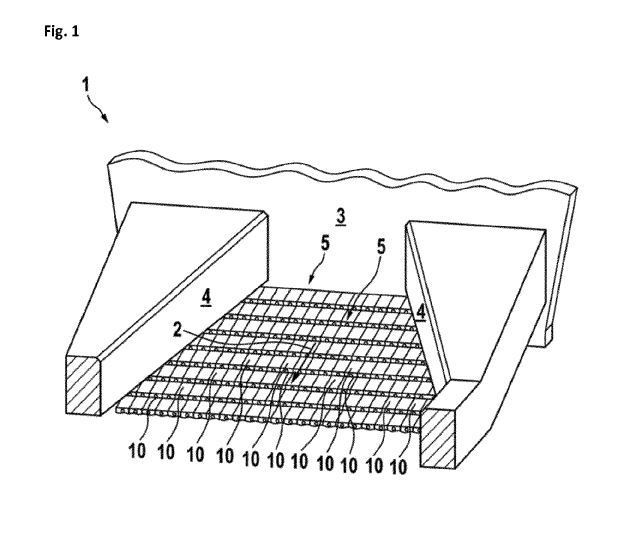

(22) 30.06.2016 (43) 12.01.2017 (57) A clinker inlet distribution grate for feeding a conveyor grate with clinker previously discharged from a kiln onto the clinker inlet distribution grate wherein...
