WO 2019/182147 A1

Flue gas desulfurization device

(22) 22.03.2019

(43) 26.09.2019

(57) An absorbing liquid extracted from an absorbing tower tank 5 of an absorbing tower 1 is transferred to flow into a slurry tank 9 by means of a first pump 8. A separating device 2 separates the absorbing liquid transferred from the slurry tank 9 by means of the second pump 10 into gypsum and a dehydrated filtrate. A filtrate recovery conduit 20 provides communication between a filtrate outlet 40 and a filtrate inlet 41. The filtrate outlet 40 has a ground height He greater than a ground height Ha of the filtrate inlet 41. The filtrate recovery conduit 20 is disposed such that the dehydrated filtrate that has flowed out of the filtrate outlet 40 can flow down due to gravity and flow into the filtrate inlet 41.

(71) Mitsubishi Hitachi Power Systems, Ltd., Kanagawa (JP)


Related articles:

Issue 5/2021 WO2021100628 (A1)

Gypsum slurry dehydration system

(22) 13.11.2020 (43) 27.05.2021 (57) A gypsum slurry dehydration system for dehydrating gypsum slurry discharged from a flue gas desulfurization apparatus comprises: a conveying device having a...

Issue 7-8/2017 EP 3 170 547 A1

Flue gas desulfurization apparatus and method of operating same

(22) 17.07.2015 (43) 24.05.2017 (57) Provided is a method of operating a flue gas desulfurization apparatus, in which gypsum slurry containing gypsum, which is obtained by bringing sulfur oxide...

Issue 06/2012

Liquid alternative fuel (LAF) ­container solution

The alternative fuel container system is a flexible system to use liquid alternative fuels easily for new or existing burner systems introduced by GRECO. The fuels can be waste oil, solvents, in fact...

Issue 4/2017 US 2017/0028345 A1

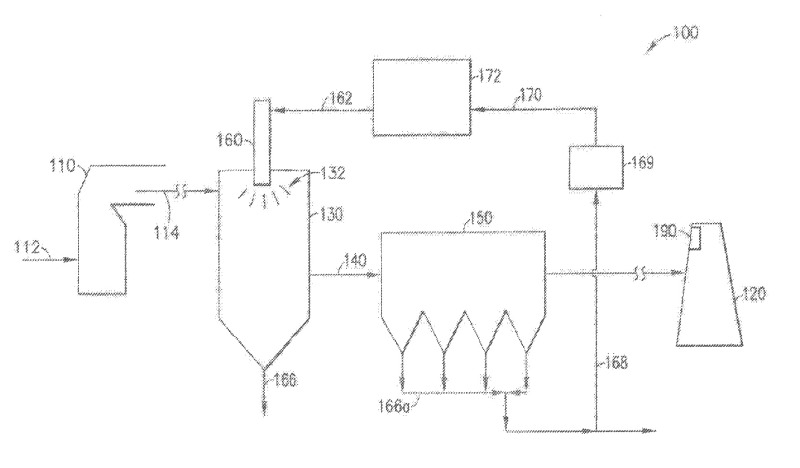

Slurry control system
