WO 2015/128910 A1

Flux calciner

(22) 18.09.2015

(43) 03.09.2015

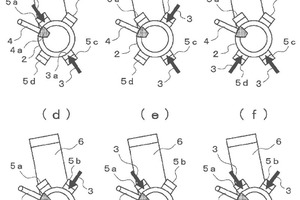

(57) Provided is a flux calciner that can perform adequate calcinations while preventing obstruction at a preheater by reducing the unburned rate at an outlet of the flux calciner. In the present invention, a plurality of pulverized coal injection lines (3), a feedstock chute (4) for cement feedstock, and first through fourth extraction conduits (5a-5d) are connected to a lower side wall of a cylindrical reactor body (2) the upper end section of which is blocked by a top panel (2b). A fluidized air injection opening (2a) for injecting fluidized air is provided in a base section of the reactor body (2). An exhaust duct (6) is connected to an upper side wall of the reactor body above the first and/or second extraction conduits (5a, 5b) with a gap provided between the exhaust duct (6) and the top panel (2b). Injection openings (3a) of the pulverized coal injection lines are provided below intake openings of the extraction conduits (5a-5d) and above the fluidized air injection opening (2a), and one of the injection openings (3a) is disposed below the third or fourth extraction conduit (5c, 5d).

(71) Mitsubishi Materials Corporation, Tokyo (JP)

(84) ARIPO (BW GH GM KE LR LS MW MZ NA RW SD SL ST SZ TZ UG ZM ZW), Eurasian (AM AZ BY KG KZ RU TJ TM), European (AL AT BE BG CH CY CZ DE DK EE ES FI FR GB GR HR HU IE IS IT LT LU LV MC MK MT NL NO PL PT RO RS SE SI SK SM TR)

x

Related articles:

Issue 3/2021 EP 3 779 341 A1

Conduit of a calciner in a cement clinker plant

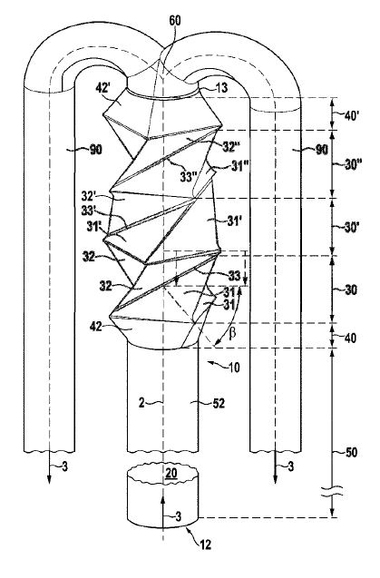

(22) 14.08.2019 (43) 17.02.2021 (57) A conduit for a calciner 10 of a cement clinker plant, having an enclosed reaction space 20 being enclosed by a side wall defining an inlet 12 in and an outlet 13...

more
Issue 05/2009 Process Know-how

Recent trends in calciner design

1 Introduction The cement industry has become significantly more energy efficient during the last 30 years with new plants having the standard features of cyclone preheater systems with precalciner...

more
Issue 04/2010

A correlation between the combustion of fuels and the design of calciners

1 Introduction The calciner is the one of the core equipments of the precalcining system [1], which directly impacts the capacity and heat consumption of the burning system. A study on the fuel...

more
Issue 1-2/2016 EP 2 939 989 A1

Fluidized calcination furnace

(22) 25.12.2013 (43) 04.11.2015 (57) A fluidized calciner is provided which allows a reduction in the rate of unburned fuel at on outlet of a fluidized calciner to enable sufficient calcination while...

more
Issue 02/2025 WO 2024/260928 (A1)

IDC Indirect Calciner

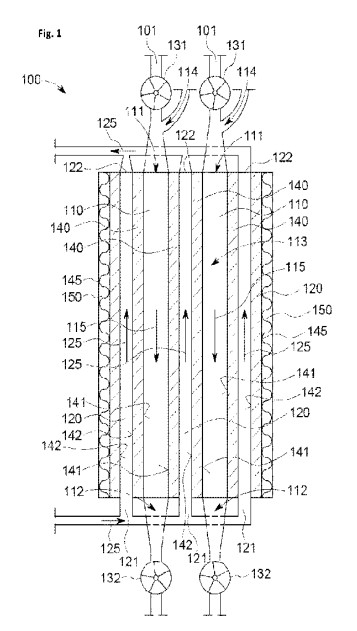

(22) 17.06.2024 (43) 26.12.2024 (57) A calciner 100 for a cement clinker manufacturing line, comprising a duct 110 with a raw meal inlet 111 and a raw meal outlet 112 being in fluid communication via...
