WO 2019/043036 A1

Low NOx calciner

(22) 29.08.2018

(43) 07.03.2019

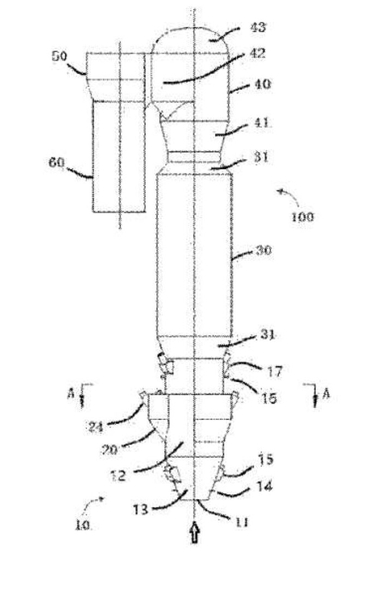

(57) A system for reducing NOx emission levels during the manufacture of cement clinker having a calciner unit with the following features: an upper portion; a lower portion; a NOx reduction zone in the lower portion; a tertiary air inlet in the upper portion for introducing tertiary air into the upper portion; a main calciner meal inlet located above the NOx reduction zone for introducing a main calciner meal portion into the upper portion; a first cooling calciner meal inlet located in the NOx reduction zone for introducing a first cooling calciner meal portion into a periphery of the NOx reduction zone; and a fuel inlet located in or below the NOx reduction zone for introducing fuel into the reduction zone.

(71) FLSmidth A/S, Vigerslev Allé 77, 2500 Valby (DK)

(84) ARIPO (BW, GH, GM, KE, LR, LS, MW, MZ, NA, RW, SD, SL, ST, SZ, TZ, UG, ZM, ZW), Eurasian (AM, AZ, BY, KG, KZ, RU, TJ, TM), European (AL, AT, BE, BG, CH, CY, CZ, DE, DK, EE, ES, FI, FR, GB, GR, HR, HU, 1E, IS, IT, LT, LU, LV, MC, MK, MT, NL, NO, PL, PT, RO, RS, SE, SI, SK, SM, TR), OAPI (BF, BJ, CF, CG, CI, CM, GA, GN, GQ, GW, KM, ML, MR, NE, SN, TD, TG)
