SPHEREOPTICS GMBH

Portable emission FTIR spectrometer for Thermal Infrared (TIR) remote and proximal sensing applications

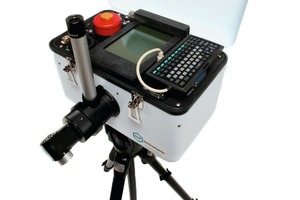

D&P Instruments’ portable FTIR spectrometer (Model 102), also known as the micro FTIR among the scientific community, is a passive-mode FTIR spectrometer, which measures the radiation emitted by the object itself. Thus, it serves as the ideal instrument for thermal infrared (TIR) remote sensing applications, where non-destructive testing is mandatory or where spectral field measurements (validation/calibration) have to comply with the requirements necessary for a quantitative comparison with emission spectra obtained via an air- or spaceborne TIR remote sensor. It’s also the product of choice for gas detection and analyses, as the FTIR-technique allows for very high spectral resolution.

The compact and portable micro FTIR is ideally suited for outdoor use and incorporates a thermally stabilized interferometer, which is available with either a liquid nitrogen or a stirling cooled dual InSb/MCT detector. This passive mode FTIR spectrometer provides the user with emission radiance spectra (which can be transformed to emissivity/temperature via TES) ranging from 2 μm to 16 μm with a spectral resolution of 4 cm-1.

http://sphereoptics.de

x

Related articles:

Issue 2012-10

Reduced energy consumption and smooth kiln operation­

ABB successfully completed test runs of its SpectraFlow online analyzers at the Fauji Cement plant in Attock/Pakistan (Fig.). The Fauji Cement Company (FCC), headquartered in Rawalpindi, operates the...

more
Issue 2019-1-2 WUHAN UNIVERSITY OF TECHNOLOGY

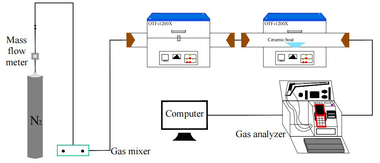

Coal combustion mechanisms and fuel NOx formation characteristics in a precalciner environment

1 Introduction Nitrogen oxides constitute one of the main air pollutants and the NOx emission regulations for the cement industry are becoming more and more stringent. Precalciners are used in the...

more
Issue 2020-7-8 ORGLMEISTER INFRAROT-SYSTEME

Fire protection system with infrared thermography for substitute fuel plants

When processing inflammable materials, fire protection naturally plays an important role. Substitute fuel processing plants, which are often located in close proximity to cement works, are a...

more
Issue 2021-5 BEAGLE SYSTEMS GMBH

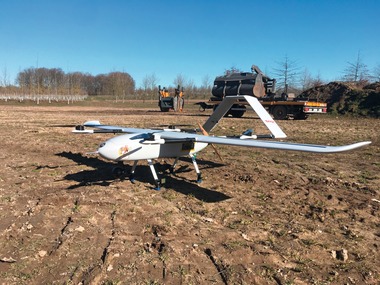

Remote application – Drone flights for use in mining
