WO 2022/090599 A1

Tool for managing the efficient incorporation of alternative fuels in cement plants

(22) 25.10.2021

(43) 05.05.2022

(57) A method and system for predicting enrichment type in terms of volatile components in a cement plant resulting from a variation in the amount of volatile components circulating in a volatile component circuit of the facility following the addition of biomass or waste as fuel, comprising the steps of: obtaining the amount and composition of raw materials and fuels used; establishing a desired degree of thermal substitution; estimating a measure of the amount of volatile components present in raw materials and fuels; predicting a measure of the amount of volatile components in raw material and fuel upon adding biomass or waste; and generating a model relating the predicted amount of volatile components to the amount remaining; estimating the amount of sulphur oxide and chlorine in raw meal and relating it to the amount of volatile components remaining, obtaining an estimate of the risk of failure.

(71) Universidad de Sevilla, P° de las Delicias, s/n - Pabellón de Brasil, 41013 Sevilla (ES)

(84) ARIPO (BW, GIL GM, KE, LR, LS, MW, MZ, NA, RW, SD, SL, ST, SZ, TZ, UG, ZM, ZW), Eurasian (AM, AZ, BY, KG, KZ, RU, TJ, TM), European (AL, AT, BE, BG, CH, CY, CZ, DE, DK, EE, ES, Ft, FR, GB, GR, IIR, IIU, IE, IS, IT, LT, LU, LV, MC, MK, MT, NL, NO, PL, PT, RO, RS, SE, SI, SK, SM, TR), OAPI (BF, BJ, CF, CG, CI, CM, GA, GN, GQ, GW, KM, ML, MR, NE, SN, TD, TG)


Related articles:

Issue 10/2018 US 2018/0194680 A1

Process and device for separating off a volatile component

(22) 05.03.2018 (43) 12.07.2018 (57) A process and device separate off a volatile component from the off-gases in cement clinker production. Raw materials for cement clinker production are passed...

Issue 2/2023 WO 2022/261686 A1

Cement clinker installation and process for depositing a volatile component

(22) 14.06.2022 (43) 22.12.2022 (57) The invention relates to an installation, in particular a cement clinker installation (1), and to a method for depositing a volatile component, in particular...

Issue 1/2023 WO 2022/236593 A1

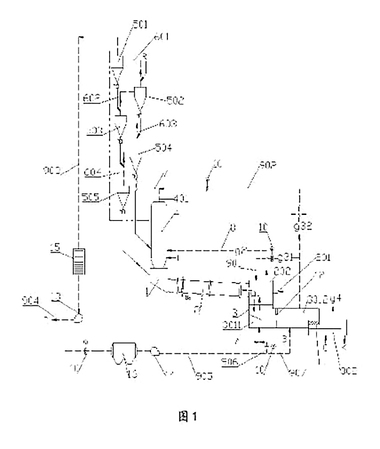

System and method for producing cement clinker by oxy-fuel combustion

(22) 10.05.2021 (43) 17.11.2022 (57) A system and method for producing cement clinker by oxy-fuel combustion circulation preheating, the system comprising a preheater, a decomposing furnace, a smoke...


Numerical simulation of oxygen-enriched combustion in a rotary kiln in the primary air and the secondary air respectively

1 Introduction China is a major cement producer and consumer. According to statistics, China produced 2.4 billion?t of cement in 2020 [1]. The cement industry is also the main coal consumption and CO2...

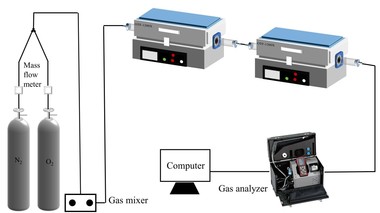

Emission characteristics of NOx and SO2 during the co-combustion of refuse-derived fuels and bituminous coal in a cement precalciner
