US 2022/0184848 A1

Pretreatment mixing and stirring device, gypsum slurry manufacturing apparatus, building board manufacturing apparatus, pretreatment calcined gypsum manufacturing method, gypsum slurry manufacturing method, building board manufacturing method

(22) 14.04.2020

(43) 16.06.2022

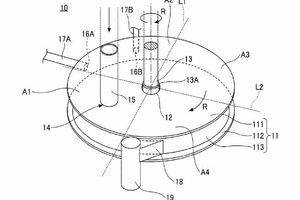

(57) A pretreatment mixing and stirring device, arranged at a stage prior to a slurry formation mixing and stirring device which forms a gypsum slurry by kneading a calcined gypsum and water, and performing a pretreatment by mixing a calcined gypsum with one or more kinds of additives selected from liquids and powders, comprising:

a cylindrical housing having a top plate, a bottom plate arranged to oppose to the top plate, a side plate arranged between the top plate and the bottom plate, and a mixing and stirring region where the calcined gypsum and the additive are mixed and stirred in an interior surrounded by the top plate, the bottom plate, and the side plate; – a disk-shaped rotating plate arranged inside the housing;

a rotating drive shaft, penetrating the top plate or the bottom plate of the housing, and coupled to the rotating plate;

a calcined gypsum supply port, arranged in the top plate, and configured to supply the calcined gypsum to the mixing and stirring region; and

an additive supply port, arranged in one of or both of the top plate and the side plate, and configured to supply the additive to the mixing and stirring region,

is provided.

(71) Yoshino Gypsum Co., Ltd., Tokyo (JP)


Related articles:

Issue 7-8/2016 AU 2014/355746 A1 | WO 2015/079835 A1

Gypsum slurry, hardened gypsum body, gypsum-based ­building material, gypsum board, process for manufacturing gypsum ­slurry, process for manufacturing hardened gypsum body, ­process for manufacturing gypsum-based building material, and process for manufa

(22) 22.10.2014 (43) 04.06.2015 (57) A gypsum slurry obtained by mixing calcined gypsum with starch phosphate carbamate, an organopolysiloxane and water. (71) Yoshino Gypsum Co., Ltd., Tokyo (JP) (84)...

Issue 5/2017 US 2017/0073271 A1

Gypsum hardened body, gypsum panel, method for manufacturing gypsum hardened body, and method for manufacturing gypsum board

(22) 23.05.2014 (43) 16.03.2017 (57) A gypsum hardened body including a gypsum slurry that has been hardened is provided. The gypsum slurry is obtained by mixing calcined gypsum, calcium hydrogen...

Issue 4/2023 US 2023/0089781 A1

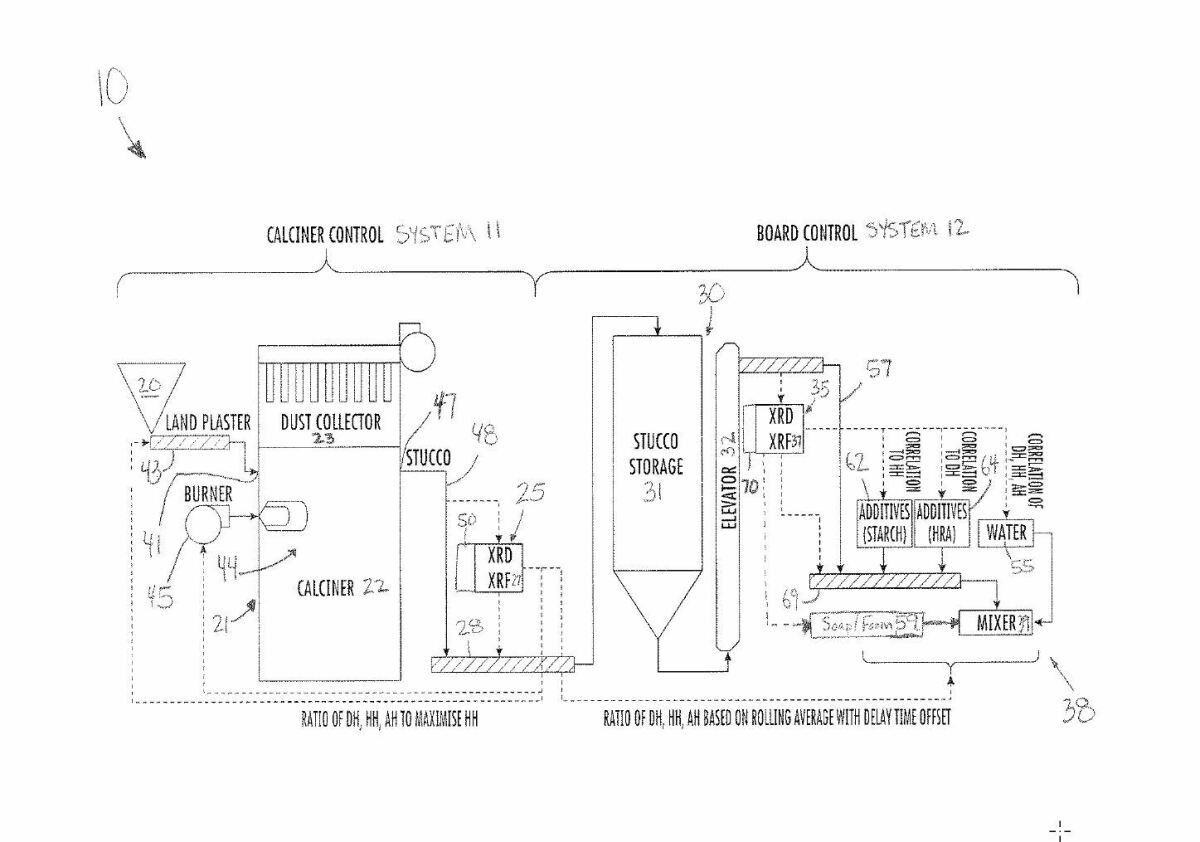

System and method for manufacturing calcined gypsum with in-line calcination control device
