Cement silo for holding cement powder and other powdered materials using compression to transport large amounts with land and marine vehicles
(22) 17.02.2017
(43) 24.08.2017

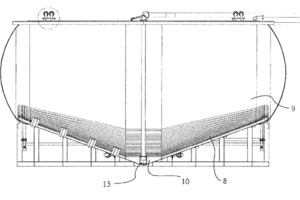

(57) The special features of the cement silo for holding cement powder and other powdered materials using compression to transport large amounts with land and marine vehicles are that at the center of the silo body (1) is the cone (2) with decreasing diameter from the upper part of the silo body (1) to the lower part of the silo body (1). Furthermore, the cone (2) functions to contain the cement powder and other powdered materials such that the silo body (1) and the cone (2) are assembled into a part that jointly functions in the filling of cement powder and other powdered materials. The cone (2) has a height that slopes downward to the bottom end of the cone at the bottom of the silo body (1). Pressure is created inside thee cone (2) at the center of the silo body (1) for released pressure to transport cement powder and other powdered materials out of the cone (2) at the center of the silo body (1).
(71) Warathananun, Phatarakorn, 49/2 Moo 1, Khlong 1, Khlong Luang, Pathumthani 12120 (TH)
(84) ARIPO (BW, GH, GM, KE, LR, LS, MW, MZ, NA, RW, SD, SL, ST, SZ, TZ, UG, ZM, ZW), Eurasian (AM, AZ, BY, KG, KZ, RU, TJ, TM), European (AL, AT, BE, BG, CH, CY, CZ, DE, DK, EE, ES, FI, FR, GB, GR, HR, HU, IE, IS, IT, LT, LU, LV, MC, MK, MT, NL, NO, PL, PT, RO, RS, SE, SI, SK, SM, TR), OAPI (BF, BJ, CF, CG, CI, CM, GA, GN, GQ, GW, KM, ML, MR, NE, SN, TD, TG)
