MASCHINENFABRIK GUSTAV EIRICH GMBH & Co KG

Dry mixes and plastic compounds from a single machine

Products with different consistencies are made in a number of industries, e.g. dry mixes, granulate, press bodies and plastic compounds. The unique Eirich operating principle makes it possible to process all of these products in one and the same machine. This significantly simplifies the equipment customers use on the production floor, and that of course has distinct advantages.

It is common knowledge that a mixer is needed for dry mixes, and a kneader is required to process plastic compounds. These are usually two completely different machines. A simple mixer cannot perform kneading operations. A kneader cannot mix, so it is normally installed downstream from a mixer.

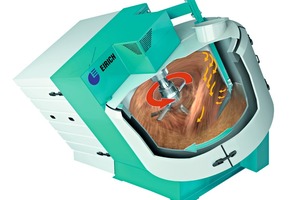

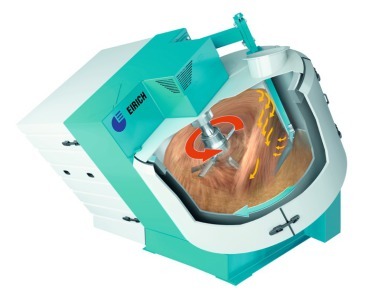

This is not the case with Eirich mixers which work with a unique operating principle. Because they have a rotating pan which transports the material to be mixed and a variable-speed (slow to fast) mixing tool, they are capable of performing mixing, granulating, kneading and dispersing operations. The separation between material transport and mixing allows the speed of the mixing tool (and thus the energy input into the mix) to vary within wide limits.

The inherent advantages of the Eirich mixing system are exploited in many industries. During a single rotation of the mixing pan, the entire contents of the pan are stirred. In contrast to other mixing systems, no demixing takes place in these machines. As a result, mixing can continue until the desired homogeneity is reached. The mixing quality is normally beyond the capabilities of other systems. Another advantage is that due to the inherent system characteristics, optimal mixing effects are produced without high speed choppers, and the mixing tools are less susceptible to wear.

For customers who make products with different consistencies, Eirich reduces the complexity of the production lines. Storage, metering and weighing are only needed once. In addition, multiple production steps which were formerly performed sequentially can be migrated to a single machine.

Depending on the requirements, the materials can be cooled or heated in the mixers. Mixing temperatures can be as high as 250 °C. Automatic cleaning systems simplify operation and reduce product changeover times.

Multi-functional Eirich mixers have a proven track record in the ceramics and refractory industries going back many years. Processing lines for factory-produced mortar are designed for the production of dry mortar and ready-to-use “wet” mortar.

At the Test Centers which are located at all company sites, trials are carried out using the customer’s raw materials to determine the optimal machine configurations. The resulting designs give potential customers a basis for making future investment decisions.

www.eirich.com

x

Related articles:

Issue 2021-3 MASCHINENFABRIK GUSTAV EIRICH GMBH & CO KG

Refractory company in Taiwan decides to use mixing technology from Eirich

There are a large number of companies worldwide that manufacture refractory products and offer kiln linings, e.g. for the production of aluminum, iron and steel, glass, ceramics or cement. Standards...

more
Issue 2018-9 MASCHINENFABRIK GUSTAV EIRICH GMBH & CO. KG

Aquaseal Qatar chooses Eirich mixing and systems technology

In Doha/Qatar, Aquaseal produces dry mortar products for all phases of construction, from foundations to finishes, under the product brand name Durabuild. Aquaseal’s broad product program includes...

more
Issue 2010-03

Successful concepts for ready-mixed special dry plaster

bauma 2010 Hall C1, Stand 425/530, Munich/Germany (19.-25.04.2010)

Eirich mixing technology has been successfully employed for many decades for the preparation of ready-mixed special dry plaster. This can be understood as all types of plaster from masonry mortar,...

more
Issue 2017-9 MASCHINENFABRIK GUSTAV EIRICH GMBH & CO. KG?HALL/STAND 4A-409

The multifunctional mixer for the laboratory and production

Eirich will be demonstrating the process engineering opportunities offered by the Eirich mixeri. It will also present a revamped series of laboratory mixers with capacities of 1 to 10 liters. The...

more
Issue 2019-7-8 MASCHINENFABRIK GUSTAV EIRICH GMBH & CO. KG

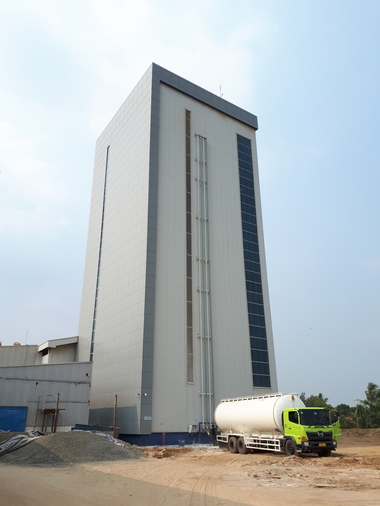

PT Anugerah Mortar Abadi from Indonesia builds dry mortar plant with mixing systems and plant engineering from Eirich
