WO 2019/041060 A1

Calcined lime feeding device

(22) 31.08.2017

(43) 07.03.2019

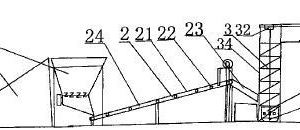

(57) A calcined lime feeding device, comprising a hopper mechanism (1), a conveying mechanism (2), a lifting mechanism (3), and a feeding hopper (4). An outlet at the lower end of the hopper mechanism (1) is mounted above an intake end of the conveying mechanism (2). A discharge port of the conveying mechanism (2) is mounted obliquely above the feeding hopper (4). The feeding hopper (4) is mounted at the lower end of the lifting mechanism (3), and guide chutes (47) are provided at two ends of the feeding hopper (4). The guide chutes (47) are clamped on a guide rod (31) between two sides of the lifting mechanism (3). The lifting mechanism (3) is mounted at one side and an upper side of a lime calcination kiln (5), and the upper end of the lifting mechanism (3) is provided with a mobile crane (32). The feeding device features a simple design, is convenient to use, safe to operate, saves on time and labor, has a greatly improved safety factor, and greatly increases productivity.

(71) Hu, Zexi, Jiangsu (CN)

(84) ARIPO (BW, GH, GM, KE, LR, LS, MW, MZ, NA, RW, SD, SL, ST, SZ, TZ, UG, ZM, ZW), Eurasian (AM, AZ, BY, KG, KZ, RU, TJ, TM), European (AL, AT, BE, BG, CH, CY, CZ, DE, DK, EE, ES, FI, FR, GB, GR, HR, HU, IE, IS, IT, LT, LU, LV, MC, MK, MT, NL, NO, PL, PT, RO, RS, SE, SI, SK, SM, TR), OAPI (BF, BJ, CF, CG, CI, CM, GA, GN, GQ, GW, KM, ML, MR, NE, SN, TD, TG)
